Drill cone cone splitter 70 mm, for PTO drive or electric motor Item-no. 75070
Drill cone diameter 70 mm,
Length: 220 mm, for electric motors with 2 kW or more and approximately 1400 rpm.
With replaceable, hardened tip.
Weight: 3 kg.
Cone material: 20MnCr5.
Tip material: 42CrMo4, hardened to approximately 55 HRC, replaceable.
Interchangeable tip thread type: left-hand thread, 8 mm pitch.
Mounting: 40 mm diameter drill hole with a depth of 60 mm, with two 10 mm diameter through holes on the side. These holes make it easiest to secure the cone with a pin.
20220614_210906_InPixio zugeschnitten 70er
20220614_210939_InPixio zugeschnitten 70er Rückseite
Drill cone cone splitter 90 mm, for PTO drive or electric motor Item-no. 75090
Drill cone diameter 90 mm,
Length: 250 mm for electric motors from 4.0 kW or more or tractors from 15 HP.
With replaceable, hardened tip.
Weight: 6 kg.
Cone material: 20MnCr5.
Tip material: 42CrMo4, hardened to approx. 55 HRC, replaceable.
Interchangeable tip thread type: left-hand thread, thread pitch 8 mm.
Mounting: 40 mm diameter drill hole with a depth of 60 mm, with two 10 mm diameter through holes on the side. These holes make it easiest to secure the cone with a pin.
20220614_210849_InPixio zugeschnitten 90er
20220614_210953_InPixio zugeschnitten 90er Rückseite
Drill cone splitter 120 mm, for tractors from 40 HP Item-no. 75120
Drill cone diameter 120 mm,
Length: 300 mm for tractors with 40 HP and above.
With replaceable, hardened tip.
Weight: 12 kg.
Cone material: 20MnCr5.
Tip material: 42CrMo4, hardened to approx. 55 HRC, replaceable.
Interchangeable tip thread type: left-hand thread, 8 mm pitch.
Mounting: 40 mm diameter drill hole with a depth of 60 mm, with two 10 mm diameter through holes on the side. These holes make it easiest to secure the cone with a pin.
PICT0953

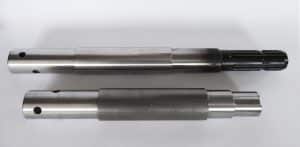

Drill cone shaft for tractor drive with one-sided 6-groove mount Item-no. 75400
Material: 42CrMo4 tool steel
Diameter: 40 mm
Length: 400 mm
The ribbed end is hardened.
Drill cone shaft for electric motor drive with one-sided mount for V-belt pulley Item-no. 75300
Material: C45 steel
Diameter: 40 mm
Length: 300 mm
Prepared at one end for mounting a V-belt pulley, diameter: 35 mm, 8-groove.
Wellen1
Wellen 3
Wellen2
Ball bearing set for shaft Item-no. 75200
Consists of:
1 bearing tube, 200 mm, diameter 90 mm, wall thickness 8 mm
2 ball bearings 6208 2 RS

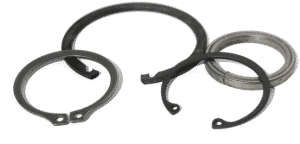

2 Seeger rings
The bearing tube can be welded directly to a frame or screw-on flange.
Kugellagergehäuse
Kugellager
Seegering
